ACM3P Series
Three-Phase AC Ammeters

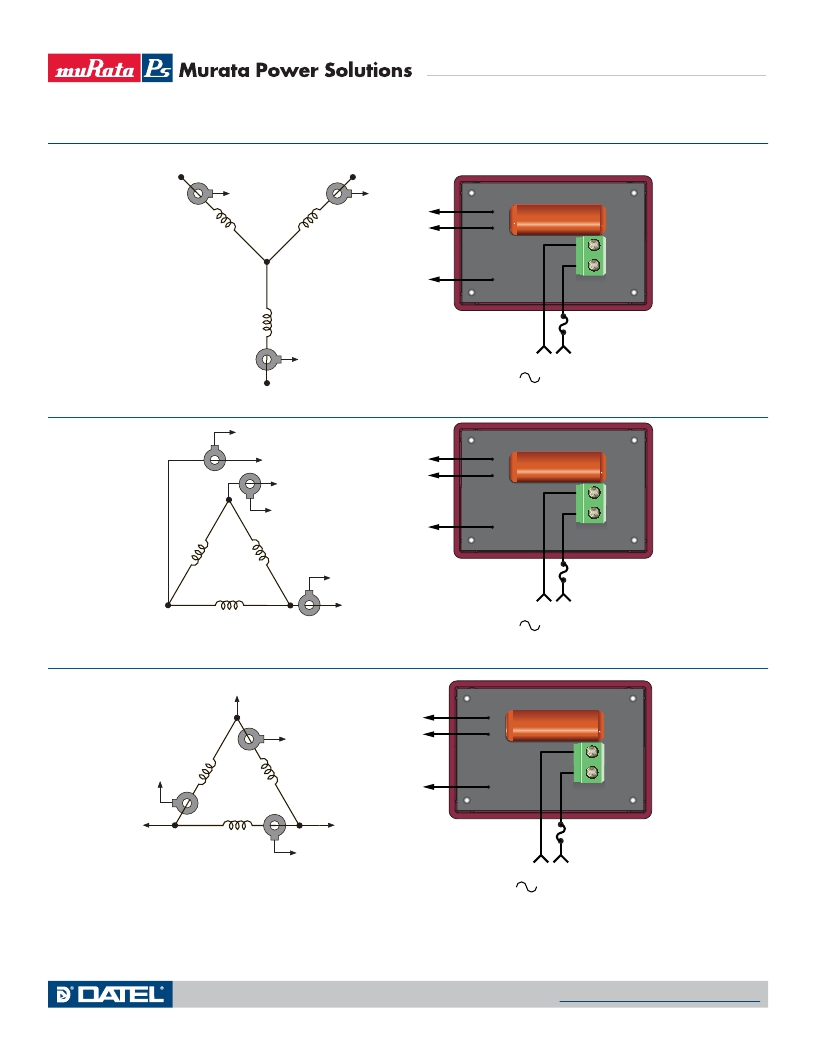

TYPICAL WIRING DIAGRAMS
PHASE A
L1
PHASE B
L2
L1
L2
B
A
TB1
Note: Line and phase currents
L3
are the same for Wye systems.
Fuse*
L3
85–264 Vac
47–63 Hz
PHASE C
L1
PHASE A
Figure 2. Wiring diagram Wye systems
L1
*See technical note 6.
PHASE B
L2
L2
B
A
TB1
L3
L3
Fuse*
PHASE C
85–264 Vac
47–63 Hz
PHASE B
Figure 3. Wiring diagram for Delta systems monitoring line current
L1
*See technical note 6.
L1
L2
L2
B
A
TB1
L3
PHASE A
PHASE C
Fuse*
L3
85–264 Vac
47–63 Hz
Figure 4. Wiring diagram for Delta systems monitoring phase current
*See technical note 6.
www.murata-ps.com/support
MPM_ACM3P Series.A04 Page 4 of 6
